Portable Wheel Balancer by Ranger

RWS-1B

SKU# 5156100

Portable Bubble Balancer


The Ranger RWS-1B bubble wheel balancer offers precision and accuracy when balancing automotive and light truck wheels, even on the go.

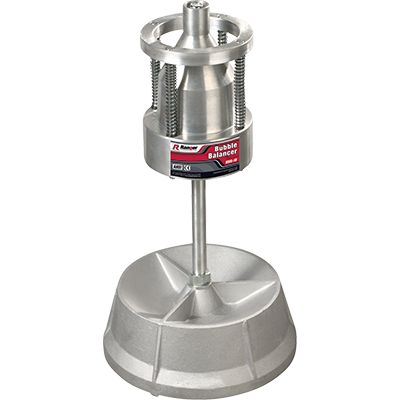

Portable Bubble Wheel Balancer RWS-1B by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

Balance Wheels on Any Budget, Anywhere

The portable RWS-1B bubble wheel balancer offers uncompromising sturdiness and balancing accuracy for car and light truck wheels. Equipped with a self-levelling stand, the RWS-1B requires no extra levelling legs, so it's ready to go anytime, anywhere. The self-aligning, spring-loaded cone and plated steel guided rods make short work of any balancing task, while the hardened pivot pin and cast pivot seat provide unparalleled durability. Throw in the fact that the head cone is made of die-cast aluminium, and you can rest assured that this portable wheel balancer is capable of handling more than its fair share of overtime, be it in the shop or out in the field.

Features

  • Rugged die-cast aluminium head cone
  • Easy-to-use self-levelling stand / no need for levelling legs
  • Built-in weight-storage compartments
  • Self-aligning, spring-loaded cone
  • Plated steel guide rods with zinc support springs
  • Hardened cast pivot seat
  • Cast aluminum base
  • Recessed circular level bubble
  • 6061 extruded aluminum ASTM B 221 shaft
  • Hardened pivot pin for maximum durability

Specifications

RWS-1B specs diagram
Hub Hole Diameter
1.5" – 4.5" (39 mm - 114 mm)
Calibrated at
90°, 180°, 270°, 360°
Bubble Sensitivity
.788 sec per 2 mm
Overall Height
23" (584 mm)
Overall Width
12" (305 mm)
Shipping Weight
14 lbs. (6 kg)
Shipping Dimensions
19" x 13" x 8" (483 mm x 330 mm x 203 mm)
