Tyre Inflation Cages by Ranger

RIC-4716

SKU# 5150315

4-Bar Tyre Inflation Cage

The RIC-4716 inflation cage is a crucial, life-saving piece of equipment that must be used during the inflation of a tyre. Tyre explosions are deadly, and only a ruggedly constructed tyre cage can prevent catastrophic damage in a worst-case scenario.

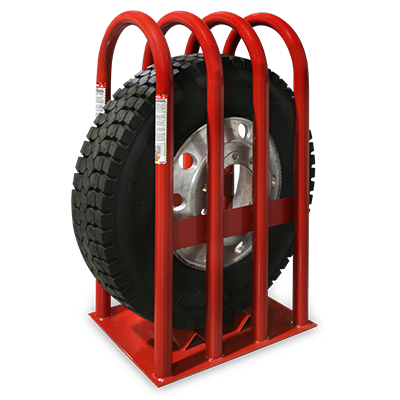

RIC-4716 4-Bar Tyre Inflation Safety Cage by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

The Tyre Inflation Cage You Trust

The RIC-4716 inflation cage is designed using 60 mm diameter, high-yield, seamless steel tubing with expansion properties to ensure strength, durability and safety. The gradual upper-arched mandrel bent tube design yields maximum space and is engineered to withstand and contain wheel and tyre projectiles under extreme tyre ruptures, preventing potential injuries or deaths. The RIC-4716 stands ​ tall and ​533 mm wide and features four welded-steel bars in order to meet the demands of all wheel service shops. It can handle tyres with a maximum width of ​406 mm and maximum diameter of 1,193 mm, delivering full-capability performance. A solid-steel welded-steel base features a full-width angle-iron wheel cradle to keep the wheel safely contained within the inflation cage during all inflation procedures.

IMPORTANT NOTE: Exploding tyres have a high potential for severe injury and death. Tyre inflation safety cages are a mandatory precaution for safe tyre inflation. tyre inflation cages provide valuable protection and exceed the OSHA Standard 29 CFR 1910.177 for servicing multi-piece and single-piece rim wheels. ALWAYS follow all warning and product instructions when using any inflation cage in order to prevent potential injuries or deaths.

The checklist below (click link) covers regulations issued by the U.S. Department of Labor, Occupational Safety and Health Administration (OSHA) under 29 CFR 1910.177.

tyre Inflation Safety

Features

  • Accommodates hub assemblies up to 241 mm wide
  • Installs on all Ranger wheel balancers with a 36 mm shaft
  • Designed to balance wheels with a centre-hole diameter from 16 mm to 32 mm
  • Kit comes with universal wheel clamp, shaft, centering cones, spacers and spin-on nut
  • 71 mm diameter, high-yield, seamless steel tubing
  • 4-Bar welded-steel construction
  • Solid-steel welded-steel base
  • Four tubular steel base frame supports keeps cage elevated off the floor to prevent rust and corrosion
  • Full-width angle-iron wheel cradle

Specifications

RIC-4716 specs diagram
Max Tire Width
16” (406 mm)
Max Tire Diameter
47” (1,194 mm)
Height
49.5” (1,257 mm)
Width
21” (533 mm)
Depth
27” (686 mm)
