Four-Post Hoists by BendPak

HD-9STX

SKU# 5175862

4,082-kg. Capacity / Narrow Width / High Hoist

The HD-9STX is our tall and narrow four-post hoist that combines a small horizontal footprint with extended-height runways, so higher-clearance vehicles can be easily parked underneath.

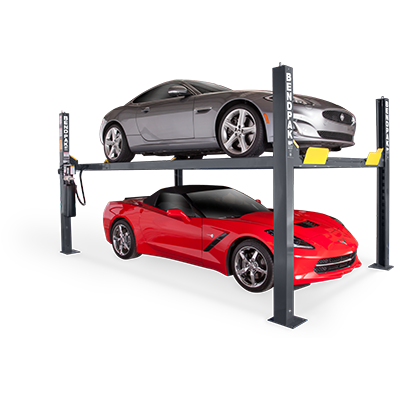

HD-9STX Four-Post Hoist with Narrow Width and High Rise by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

More Height in Less Floor Space

The HD-9STX is your 4,082-kg. rugged lifting solution for when you need get something heavy and high, but you don't have a lot of space on the ground. Perfect for vehicle storage and service—in the shop or garages with high ceilings. Whether you're a service professional or a DIY'er, BendPak’s got the right hoist for you. This model is available with optional casters, drip-trays, jack platform and more.

With more height to work with, this hoist does something others do not: it fits trucks and SUVs in the lower level. This is essential for parking purposes, especially if your lower-level vehicle is too heavy for the runways. A high-rise hoist also increases the comfort of techs working underneath. Pulling transmissions and draining oil is safer and easier on  high-rise car hoist. The HD-9STX eliminates stooping and awkward straining when accessing the vehicle underbody. When you’re uncomfortable, you’re more likely to make mistakes, and there’s nothing better than a car hoist that hoists to the perfect height. The HD-9STX maximizes versatility in a car hoistt that adapts to your height and lifestyle. The narrow designs fits in the same floor space as the HD-9ST but requires a bit more ceiling height to fully enjoy.

The HD-9STX is an ALI Certified Car Lift
A Study in Hoist Design

Study in Hoist Design

Hoist comparisons and more
Specifications and Dimensions

Specifications

Download the latest specs
BendPak 5-2-1 Warranty

Warranty

Covered by 5-2-1 warranty
Car Lift Balancing Safety

Balancing Safety

Finding center of balance
Best Car Hoist Guide

Best Car Hoist Guide

Introduction to car hoist types
Top 10 Things to Know Before Buying a Car Hoist

Things to Know

Before buying a car hoist

Features

  • 4,082-kg. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Freestanding design
  • Narrow-width
  • High-rise
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 9.5 mm aircraft cable
  • Rugged 32 mm roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 2,041-kg. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved

HD-9STX Specifications

HD-9STX specs diagram

Capacity

Lifting Capacity*
9000
*Max Capacity / Front Axle
4500
*Max Capacity / Rear Axle
4500

Rise

A - Min. Runway Height:
4.5
B - Max. Rise:
82
C - Max. Lifting Height:
86.5
Time to Full Rise:
50 seconds

Outside Dimensions

D - Overall Width:
100.25
E - Outside Length:
198
F - Overall Length:
224
G - Height of Columns:
100

Inside Dimensions

H - Width Between Columns:
89.75
I - Drive-Thru Clearance:
76.5

Runways

J - Runway Width:
19
K - Length of Runways:
188
L - Width Between Runways:
or 37.5
M - Runway Centerline:
or 56.5
N - Outside Edge of Runways:
or 75.5

Minimum Wheelbase

Rated Capacity:
135
75% Capacity:
115
50% Capacity:
95
25% Capacity:
80

Locking

Locking Positions:
15
Lock Spacing:
Every 4" / 102 mm

Power Unit

Motor:
220 VAC / 60 Hz. 1Ph.
Noise:
45 dB

Shipping

Weight:
1,992 lbs. / 906 kg
Dimensions:
204" x 22" x 40" / 5,182 mm x 559 mm x 1,016 mm

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
