Four-Post Hoists by BendPak

HD-7PXW

SKU# 5175516

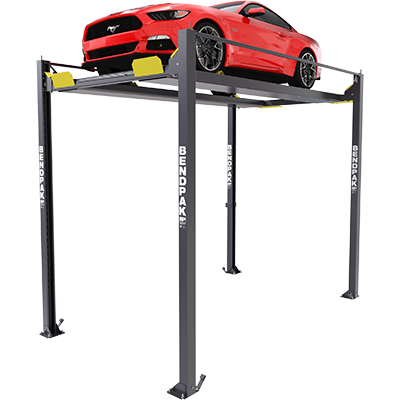

3,175-kg. Capacity Super-Tall Four-Post Hoist / Vehicle Display Platform

The HD-7PXW is a literal giant. This four-post hoist is also a magnificent display platform that will effortlessly hoist up to 3,175 kg. over 3.65 m into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!

HD-7PXW is a Four-Post Hoist that doubles as a display hoist
User Manual Download
Sales Sheet Download
Warranty Download

Amazingly Tall ​Four-Post ​Hoist

The HD-7PXW four-post hoist has a 3,175-kg. hoist capacity and 4,775 mm long runways to accommodate a variety of vehicle types and wheelbases.

Same great benefits as other hoists

The HD-7PXW has all the same safety and convenience features as other BendPak four-post hoists. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the hoist's lone hydraulic cylinder is neatly tucked under the power-side runway. There's simply no better-looking and higher-reaching ​car hoist on the market than the HD-7PXW.

The HD-7PXW is an ALI Certified Car Lift
A Study in Hoist Design

Study in Hoist Design

Hoist comparisons and more
Specifications and Dimensions

Specifications

Download the latest specs
BendPak 5-2-1 Warranty

Warranty

Covered by 5-2-1 warranty
Car Lift Balancing Safety

Balancing Safety

Finding center of balance
Best Car Hoist Guide

Best Car Hoist Guide

Introduction to car hoist types
Top 10 Things to Know Before Buying a Car Hoist

Things to Know

Before buying a car hoist

Features

  • 3,175-kg. maximum hoisting capacity
  • Super tall rise of delivers 3.7 m of hoisting height
  • Low sheen black color
  • Underside of runways are shielded by full-length covers
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 38 mm aircraft cable
  • Rugged 32 mm roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Ramps feature non-skid surface
  • Push-button pneumatic safety release

HD-7PXW Specifications

HD-7PXW specs diagram

Capacity

Lifting Capacity*
7000
*Max Capacity / Front Axle
3500
*Max Capacity / Rear Axle
3500

Rise

A - Min. Runway Height:
4.5
B - Max. Rise:
140
C - Max. Lifting Height:
145
Time to Full Rise:
60 seconds

Outside Dimensions

D - Overall Width:
110.25
E - Outside Length:
198
F - Overall Length:
224.5
G - Height of Columns:
158

Inside Dimensions

H - Width Between Columns:
100
I - Drive-Thru Clearance:
86.5

Runways

J - Runway Width:
19
K - Length of Runways:
188
L - Width Between Runways:
37.5 or 44.5
M - Runway Centerline:
56.5 or 63.5
N - Outside Edge of Runways:
75.5 or 82.5

Minimum Wheelbase

Rated Capacity:
135
75% Capacity:
115
50% Capacity:
95
25% Capacity:
80

Locking

Locking Positions:
30
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
208-230 VAC / 50-60 Hz / 1Ph
Noise:
45 dB

Shipping

Weight:
Dimensions:

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
